Thermo King V Series
Dependable vehicle-powered refrigeration for vans and trucks. From local delivery vehicles to larger refrigerated trucks, Thermo King V Series systems are designed to help protect temperature-sensitive cargo throughout the route.
Refrigeration Built Around the Vehicle
Thermo King V Series systems use a compressor powered by the vehicle engine rather than adding a separate diesel engine to the refrigeration unit. The result is a compact refrigeration solution designed for delivery vans, insulated trucks, box trucks, and urban distribution operations.
Multiple Vehicle Applications
Solutions are available for smaller insulated vans, compartment applications, medium box trucks, rooftop installations, and larger refrigerated trucks.
Temperature Protection
Fresh and frozen configurations can support food, beverage, pharmaceutical, floral, catering, and other temperature-sensitive applications.
Electric Standby Options
Available configurations can operate from electric power while parked, helping maintain cargo temperature without keeping the vehicle engine running.
Built for Delivery
The V Series is designed for local distribution, frequent-stop transportation, urban delivery, and temperature-sensitive fleet applications.
Thermo King V Series Models
Vehicle size, insulation, cargo temperature, ambient conditions, door openings, route length, and electrical requirements all affect proper refrigeration unit selection. Peak Thermo King can help match the application to the right V Series configuration.
Thermo King V-220 Series
A compact vehicle-powered refrigeration solution designed for small insulated vans and compartmental applications. V-220 MAX configurations provide additional capacity for more demanding temperature requirements.
Thermo King V-320 Series
Step up in capacity while retaining the compact design required for insulated vans and compartment applications. The V-320 is available in standard and MAX configurations for a range of delivery requirements.
Thermo King V-520 Series
One of the most versatile V Series platforms, available in both nosemount and low-profile rooftop configurations.
The V-520 is designed for small to medium insulated box trucks, while the V-520 RT rooftop configuration works well on medium to large vans and body-on-chassis applications. MAX and SPECTRUM configurations expand its capabilities for frozen and multi-temperature transportation.
- V-520 nosemount for insulated box trucks
- V-520 RT low-profile rooftop configuration
- Electric standby available
- Automatic hot gas defrost
- MAX and SPECTRUM configurations available

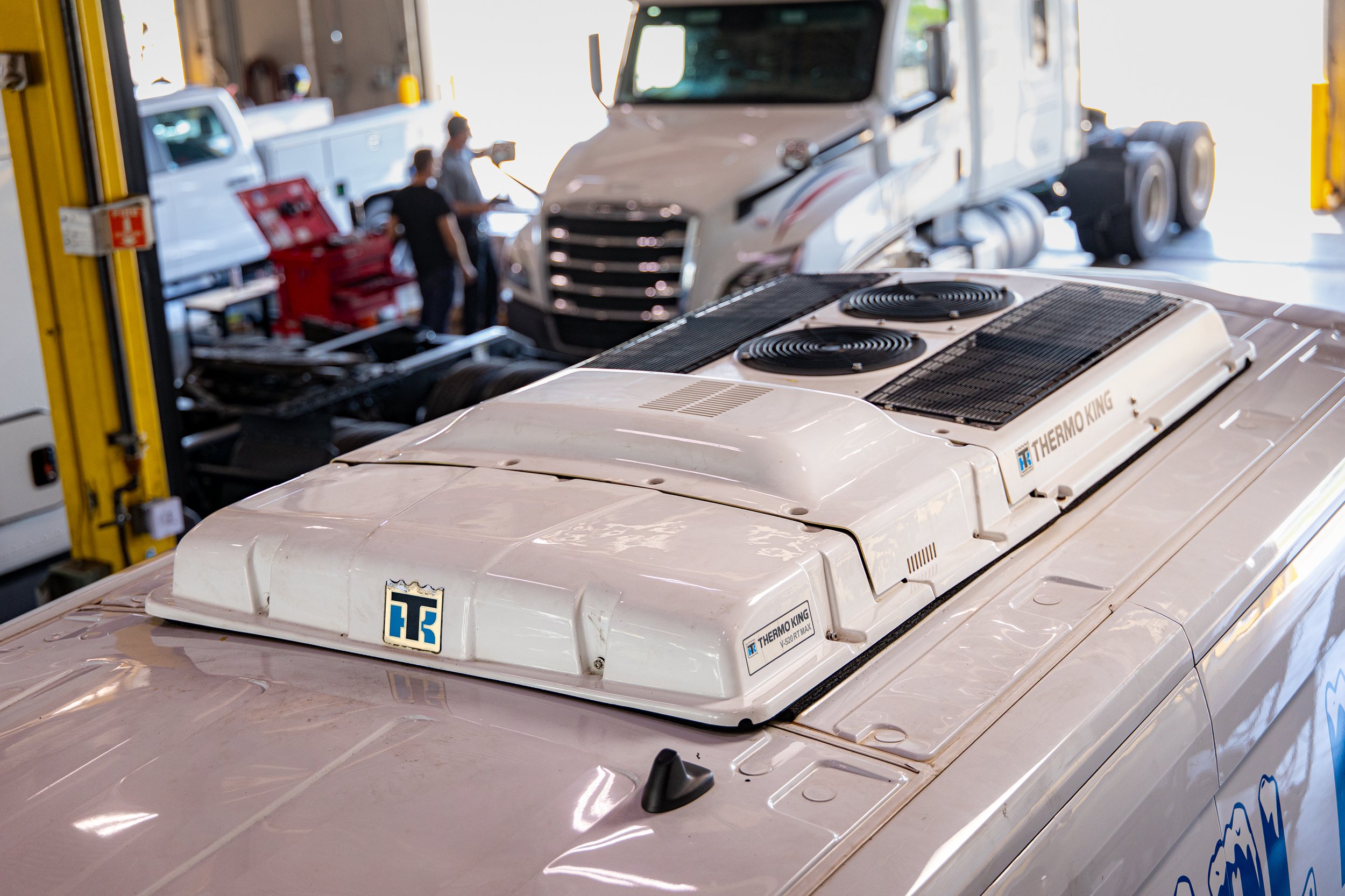

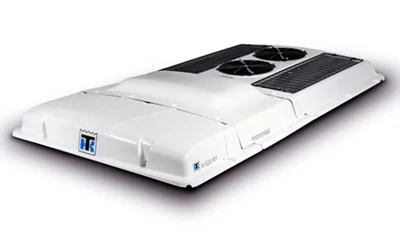

V-520 Rooftop
Need refrigeration without a traditional front-mounted condenser? The V-520 rooftop arrangement is designed for medium to large insulated vans and certain body-on-chassis vehicles where a rooftop refrigeration solution better fits the vehicle configuration.

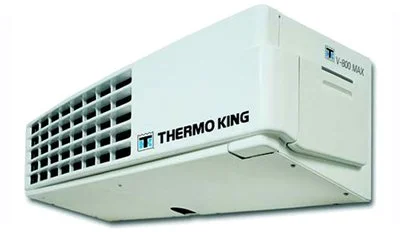

Thermo King V-800 Series
High-capacity vehicle-powered refrigeration for medium and large refrigerated trucks.
The V-800 combines strong cooling performance with a two-piece split system designed for larger truck applications. It provides fleets with a vehicle-powered alternative for temperature-controlled urban and regional distribution.
- V-800 and V-800 MAX configurations
- Fresh and frozen applications
- Road compressor powered by the vehicle engine
- Electric standby available on applicable configurations
- Direct Smart Reefer controller
- Designed for larger refrigerated truck applications
Which Thermo King V Series Is Right for You?
Start with vehicle size and application. Peak Thermo King can help verify the complete refrigeration requirements before selecting the final configuration.
| Model | Typical Application | Max Cooling* | Airflow | Frozen Capability |
|---|---|---|---|---|
| V-220 | Small insulated vans | 7,160 BTU/hr | 650 CFM | MAX configuration |
| V-320 | Small vans & compartments | 10,015 BTU/hr | 765 CFM | MAX configuration |
| V-520 | Vans & small/medium box trucks | 15,500 BTU/hr | 1,415 CFM | MAX / SPECTRUM |
| V-800 | Medium/large trucks up to 24 ft | 20,500 BTU/hr | 1,600 CFM | MAX configuration |
*Maximum listed truck-engine cooling capacities shown at a 35°F return-air condition for applicable MAX configurations. Actual system selection depends on vehicle, insulation, cargo, temperature requirements, ambient conditions, route, and operating conditions.
Built for the Cargo Your Business Depends On
Peak Thermo King can help configure V Series refrigeration around your vehicle, route, operating temperature, cargo, insulation package, and daily delivery demands.
More Than the Unit
Selecting a refrigeration unit is only part of building a dependable refrigerated vehicle. Proper sizing, installation, configuration, maintenance, service, and parts support all matter once the vehicle goes to work.
Peak Thermo King supports customers through 12 locations across Idaho, Montana, Oregon, Texas, Utah, and Washington.
Match the refrigeration system to the vehicle, temperature range, cargo, and route.
Proper installation and configuration for dependable temperature control.
Thermo King service support when equipment requires maintenance or repair.
Access to genuine Thermo King parts and refrigeration components.
Thermo King V Series Questions
What is a Thermo King V Series unit? +
Which Thermo King V Series unit should I choose? +
Can the V Series handle frozen products? +
What is electric standby? +
What is the difference between the V-520 rooftop and nosemount? +
How large of a truck can the V-800 support? +
Talk With Peak Thermo King
Tell us about your vehicle, cargo, route, and temperature requirements. Peak Thermo King can help determine which V Series configuration best fits your operation.
